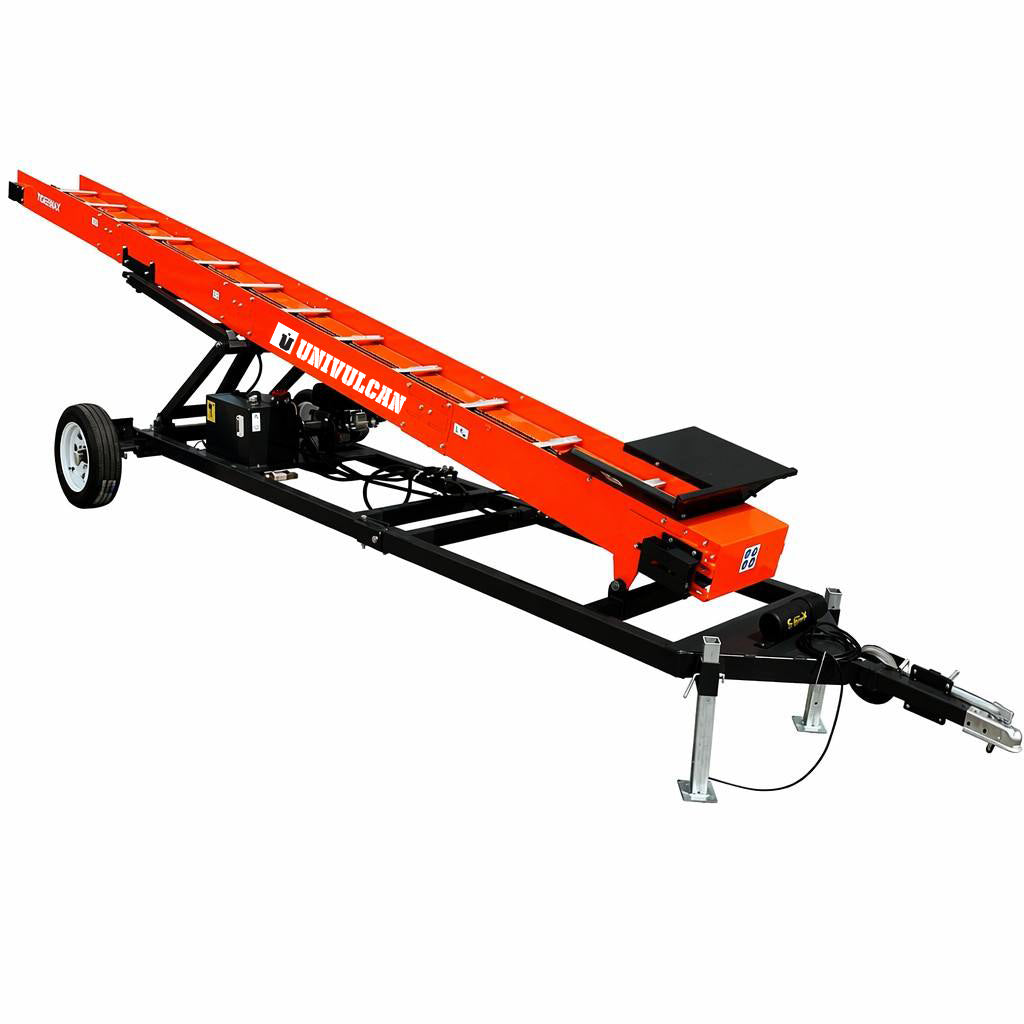

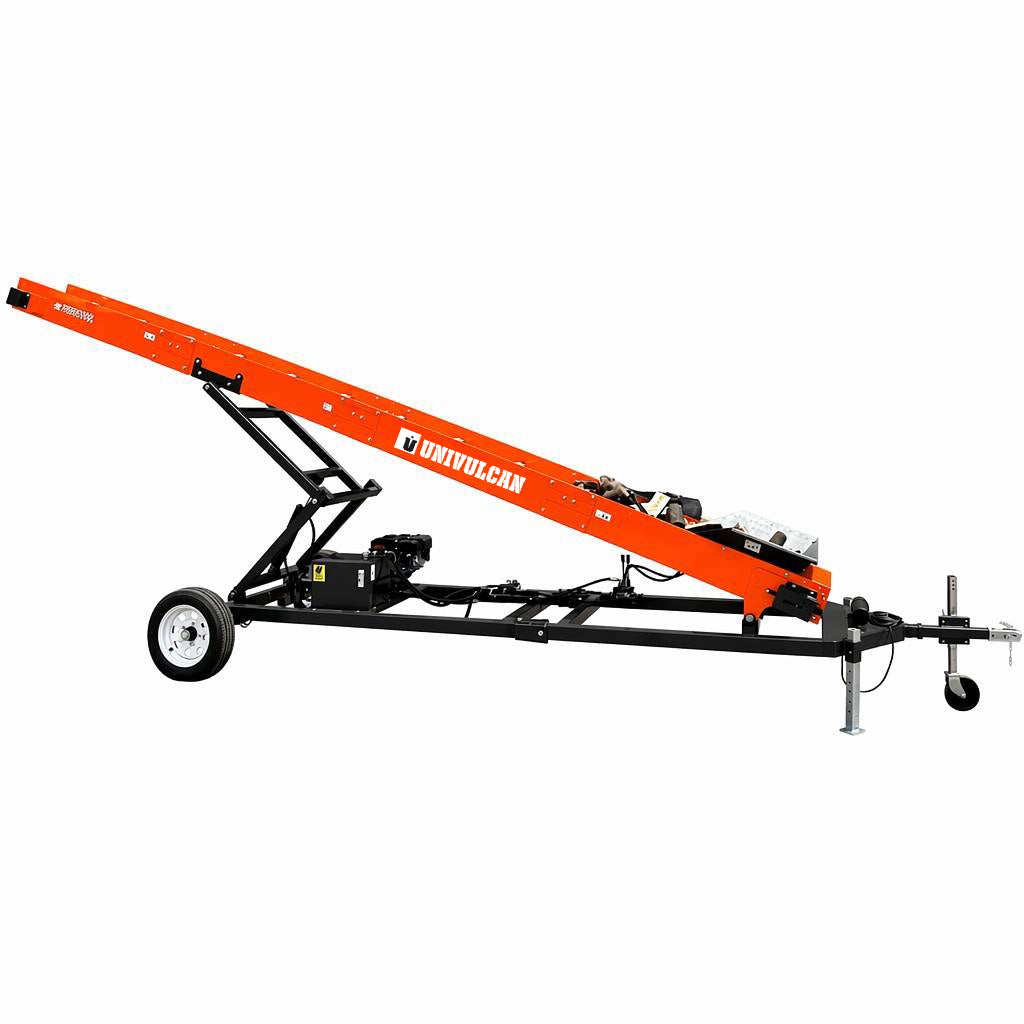

· This firewood conveyor offers efficient, powerful and safe performance, making it an essential tool for conveying and lifting firewood in diverse settings.
· This wood conveyor equipped with a 7HP gasoline-powered hydraulic driven system operates with high efficiency and powerful performance. The belt speed is variable by changing the engine speed.
· With an adjustable reach up to 124 inches, this conveyor's speed, efficiency, reliability, and safety are unmatched in the conveying industry.
· Our top priority is the safety of our customers. Our portable concrete conveyor systems can make your job easier for a variety of applications including ready-mix concrete, steel fiber, ice, batching, and more.
· Height at lowest point: 5 ft
Maximum conveyor load: 264.5 lbs
· Height at highest point: 10.5 ft
Maximum conveyor load: 132 lbs
· To ensure safety, when transporting lightweight timber, please ensure that the maximum height does not exceed 8 feet.
|
Model |
HC06-C |
|
Engine Power |
RATO 212cc 7hp E-Start |
|
Engine Type |
Single Cylinder, 4 Stroke, Air-Cooled, OHV |
|
Conveyor Belt length |
236 in |
|
Conveyor Belt Wide |
16 in |
|
Max Discharge Height |
124 in |
|
Min Discharge Height |
60 in |
|
Drive System |
Hydraulic |
|
Hydraulic Pump |
2 GPM Single Stage Pump |
|
Hydraulic Fluid Type |
AW-46 |
|
Hydraulic Tank Capacity |
4.2 gal |
|
Hydraulic Oil Filter Fineness |
10 micron |
|
Towing |
Tow Bar with 2 in Coupler |
|
Maximum Towing Speed |
45 MPH |
|
Tires Rims |
13-in wheel |
|
Tires |
19-in Radial (O.D.) (Tire spec: 155/65R13) |
|
Flip-Up Jack |
1500Lbs.8” wheel |
|
Overall Dimensions (LxWxH) |
261x60x63 in |
|
Finish |
Powder Coating |
|
Package Method |
Plywood Case |
|
Packing Size (LxWxH) |
90x38x33 in |
|
Warranty |
1year |
|
Weight (N.W./G.W.) |
1212 / 1344 lbs |
